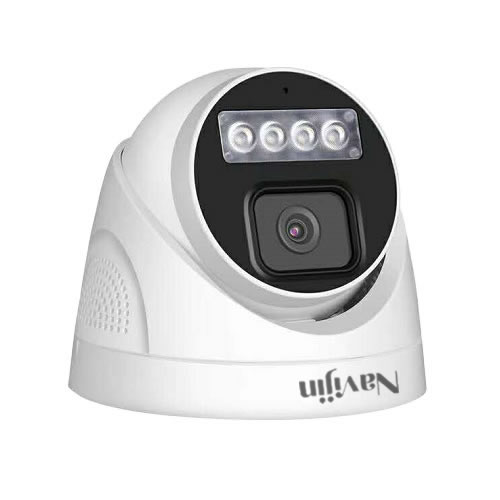

ICD-N8092
4MP 4mm IP67 20M-IR Plastic IP Dome Camera
DatasheetContactDownloadsHighlights Features
- Max. image resolution: 4MP(2560x1440)
- H.265 high effective compression, save bandwidth and storage space
- IR distance can reach 20M
- IP67 Plastic casing
- Support bidirectional talk, Support with Built-in MIC
- Support SD card, local-storage (optional)
Specifications
Camera | |
Model | ICD-N8092 |
Image Sensor | 1/2.9" Low illumination 4MP CMOS |
Max. Resolution | 4MP(2560x1440) |
Min. Illumination | 0Lux(IR on); Color: 0.01Lux/F1.4; B/W:0.05Lux/F1.4 |
Shutter Time | 1/25 to 1/10000s |
Day/Night | Ext, ICR |
Lens Type | 4mm fixed lens |
IR Distance | Smart IR; 20M (4x dual light leds) |
Video and Audio | |
Video Encoding | Main stream: 4MP(2560x1440@20fps), 3MP(2304x1296@20fps), 2MP(1920x1080@25fps), 720P(1920x720@25fps) Sub-stream: D1(720*576), VGA(640*480), Q720P(640*360), CIF(352*288), QVGA(320*240) |
Video Compression | H.264/H.265, 2 Stream |
H.264 Encoding | BaseLine/Main Profile/High Profile |
H.265 Encoding | Main Profile |
Bit Rate Control | CBR, VBR (160kbps~4000kbps) |
Audio Compression | G.711u/G.711A |
Audio Bit Rate | 64Kbps |
Network | |
Network Protocol | TCP/IP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTSP, RTMP, DDNS, UPnP, FTP |
Interface Protocol | Onvif/Slink/HIK/TST/HTTP Push |
Preview Monitoring | Mobile Phone/IMS/NVR/Browser |
Simultaneous Live View | Up to 4-ch |
User | User add/modify/delete, permission management |
Security | Authorized user name and password, HTTPS encryption and AES linkencryption, RTSP |
Image | |
Video Parameter | D-WDR/3D-NR/Defog |
Day/Night Switch | Auto/Manual |
Image Setting | Brightness, Contrast, Saturation, Sharpness, Hue |
Privacy Mask | 4 zones |
OSD | Title, time and date overlay, multi-line OSD, OSD color optional |
Event | |
Basic Event | Motion detection, Video tampering alarm, Human detection |
Event Linkage | Snapshot, TF card video, FTP upload or Email sending, alarm output linkage, preset linkage |
Interface | |
Ethernet Interface | 1x RJ45 10M/100M network-adaptive Ethernet port |
On-Board Storage | Built-in memory card slot, support SD card, up to 256GB |
Audio | Built-in MIC |
General | |
Power Supply | DC 12V (PoE optional) |
Material | Plastic |
Operating Temperature | -25°C ~ 55°C |
Operating Humidity | 0%-90% |
Protection Grade | IP67 |
