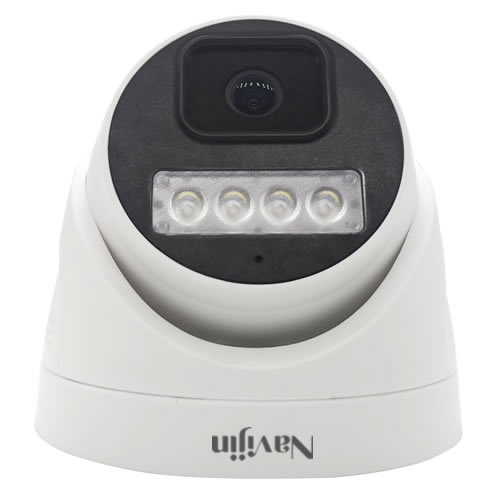

ICD-N8094

5MP 4mm IP67 20M-IR Plastic IP Dome Camera

DatasheetContactDownloads

Highlights Features

  • Max. image resolution: 5MP(2592x1904)
  • H.265 high effective compression, save bandwidth and storage space
  • IR distance can reach 20M
  • IP67 Plastic casing
  • Support bidirectional talk, Support with Built-in MIC
  • Support SD card, local-storage (optional)

Specifications

Camera
Model ICD-N8094
Image Sensor 1/2.9" Low illumination 5MP CMOS
Max. Resolution 5MP(2592x1904)
Min. Illumination 0Lux(IR on);
Shutter Time 1/25 to 1/10000s
Day/Night Ext, ICR
Lens Type 4mm fixed lens
IR Distance Smart IR; 20M (4x dual light leds)
Video and Audio
Video Encoding Main stream: 5MP(2592x1904@20fps), 4MP(2560x1440@20fps), 3MP(2304x1296@20fps), 2MP(1920x1080@25fps), 720P(1920x720@25fps)
Sub-stream: D1(720x576), VGA(640x480), Q720P(640x360), CIF(352x288), QVGA(320x240)
Video Compression H.264/H.265, 2 Stream
H.264 Encoding BaseLine/Main Profile/High Profile
H.265 Encoding Main Profile
Bit Rate Control CBR, VBR (160kbps~4000kbps)
Audio Compression G.711u/G.711A
Audio Bit Rate 64Kbps
Network
Network Protocol TCP/IP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTSP, RTMP, DDNS, UPnP, FTP
Interface Protocol Onvif/Slink/HTTP Push
Preview Monitoring Mobile Phone/IMS/NVR/Browser
Simultaneous Live View Up to 4-ch
User User add/modify/delete, permission management
Security Authorized user name and password, HTTPS encryption and AES linkencryption, RTSP
Video Parameter D-WDR/3D-NR/Defog
Day/Night Switch Auto/Manual
Image Setting Brightness, Contrast, Saturation, Sharpness, Hue
Privacy Mask 4 zones
OSD Title, time and date overlay, multi-line OSD, OSD color optional
Event
Basic Event Motion detection, Video tampering alarm, Human detection
Event Linkage Snapshot, TF card video, FTP upload or Email sending, alarm output linkage, preset linkage
Interface
Ethernet Interface 1x RJ45 10M/100M network-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support SD card, up to 256GB
Audio Built-in MIC
General
Power Supply DC 12V (PoE optional)
Material Plastic
Operating Temperature -25°C ~ 55°C
Operating Humidity 0%-90%
Protection Grade IP67
